ICL 1906A

Configuration

1906A System
1906A with 256K 24-bit words of store (650ns) including extended precision Floating Point Unit, paging, 1 high-speed channel, 5 extra slow channels
Peripherals
2 × 4-deck cluster 80Kcs/9 track magnetic tape phase-encoded recording at 1600 bits per inch with a transfer rate of 160K characters per second
2 × 2-deck cluster 60Kcs/7 track magnetic tape NRZ recording at 200, 556 or 800 bits per inch with transfer rates 15K, 42K or 60K characters per second respectively
1 × 420M ch disc file with control
9-spindle EDS-30 exchangeable magnetic disc file, each disc cartridge holding 30.8M characters with an instantaneous transfer rate of 416 Kilocharacters per second for each drive
2 × 2M ch magnetic drum and controller with a transfer rate of 1.4M characters per second
2 × 1,600 cpm card readers (with binary image)
2 × 1,000 ch/sec paper tape readers
1 × 110 ch/sec paper tape punch
1 × 100 card/min card punch
2 × 1,350 line/min printers
Communications
Communications equipment: ICL 7903, comprising a communications processor, with ancillary equipment capable of controlling up to about 32 keyboard and 10 card reader/line printer terminals.

The ICL 1906A computer was installed in July/ August 1971.

In May 1973, a 5-spindle EDS-60 exchangeable disc file was added, each cartridge holding approximately 60M characters, with an instantaneous transfer rate of 416 Kilocharacters per second for each drive.

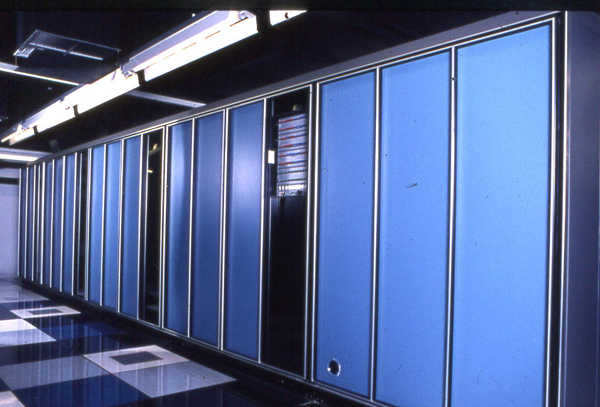

1906A Processor

1906A Processor
Large View

1906A Disc with P S Brown of ICL 741 Mwords

1906A Disc with P S Brown of ICL 741 Mwords
Large View

EDS30 Exchangeable Discs, J A Rae

EDS30 Exchangeable Discs, J A Rae
Large View

Card Reader

Card Reader
Large View

1906A Tape Reader

1906A Tape Reader
Large View

Lineprinter

Lineprinter
Large View

1906A Tape Decks

1906A Tape Decks
Large View

EDS 60 added May 1973

EDS 60 added May 1973
Large View
